Features
- Dual USB ports charges most compatible USB electronic devices
- Tamper-resistant shutters provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
- Replaces a standard duplex receptacle
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire strippers speed installation
Specifications
| Brand |
EATON WIRING DEVICES |
| Model # |
TR7765W-KB-L |
| Length |
6.25 in |
| Width |
5.0 in |
| Height |
9.75 in |
| Weight |
0.5 lbs |
| UPC |
032664767128 |
| SKU |
1452879 |

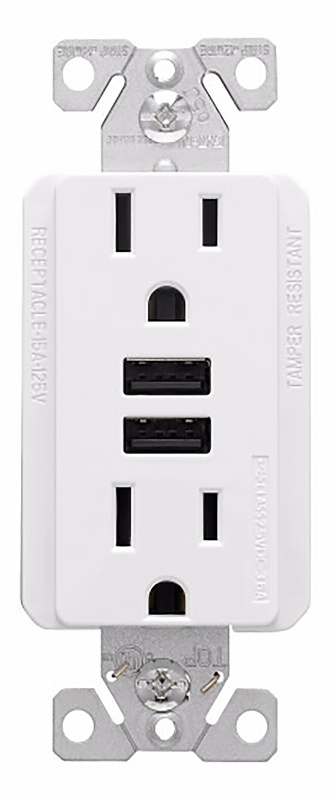

Eaton USB Combination Receptacle, 125 VAC, 5 VDC, 15 A at 125 VAC, 3.6 A at 5 VDC, Frequency Rating: 140 kHz, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, Wiring Type: Screw Terminals, Side and Back, Wire Size: 14 to 12 AWG, NEMA Configuration: NEMA 5-15R, Operating Temperature: -4 to 140 deg F, Thermoplastic, White, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
