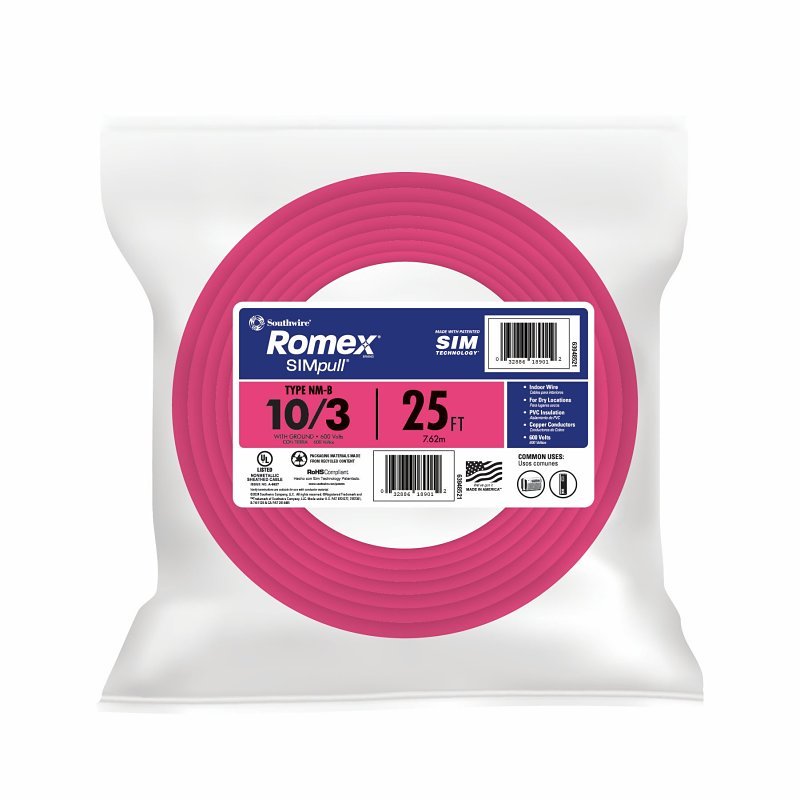

WIRE BUILD 10/3NM WGX25 FT 30A

Romex Non-Metallic Cable, Wire Size: 10 AWG, 25 ft L, Number of Conductors: 3, Conductor Material: Copper, Conductor Insulation: PVC, Stranded/Solid: Solid, Sheath Material: Nylon, 600 V, 30 A, Resistance: 1.040 to 1.253 Ohm, Bend Radius: 1.3 in, Operating Temperature: 90 deg C
Ships from Warehouse
  • Store Availability
Add to cart
Add to wishlist
Price
$ 129.99 $ 129.99
$ 129.99

Contact Us
Features
  • Construction - bare copper per ASTM B3 sizes #14 AWG to #10 AWG are solid, sizes #8 AWG to #2 AWG are Class B compressed stranded per ASTM B8
  • All phases and neutral(s) are insulated with PVC with nylon sheath 2/C - black, white 3/C - black, red, white 4/C - black, red, blue, white insulated
  • Solid soft drawn bare copper with kraft paper wrap ground
  • Kraft paper binder
  • PVC jacket utilizing SIMpull technology jacket
Specifications
Brand SOUTHWIRE
Model # NMB10/3 PINK
Length 10.375 in
Width 10.0 in
Height 9.625 in
Weight 4.68 lbs
UPC 032886263620
SKU 6998702
