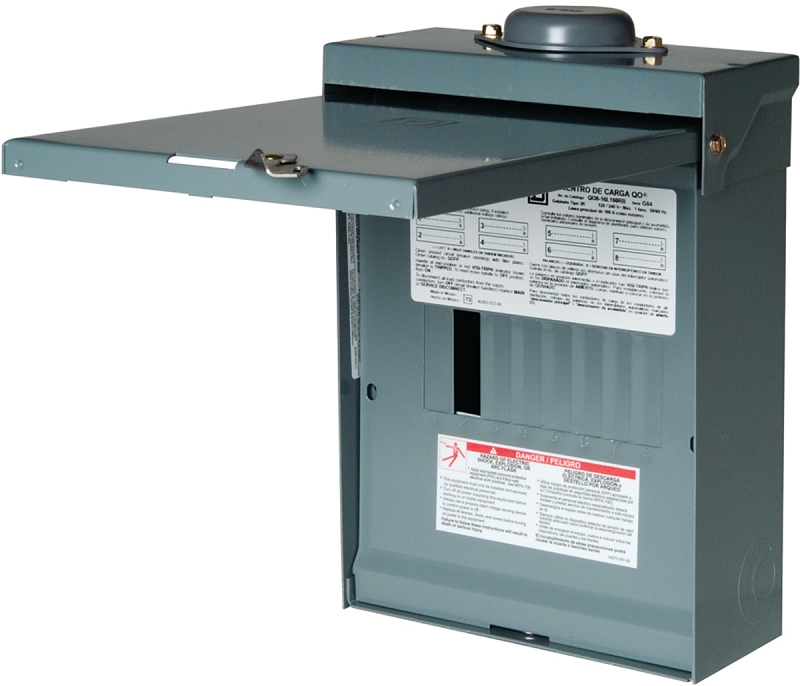

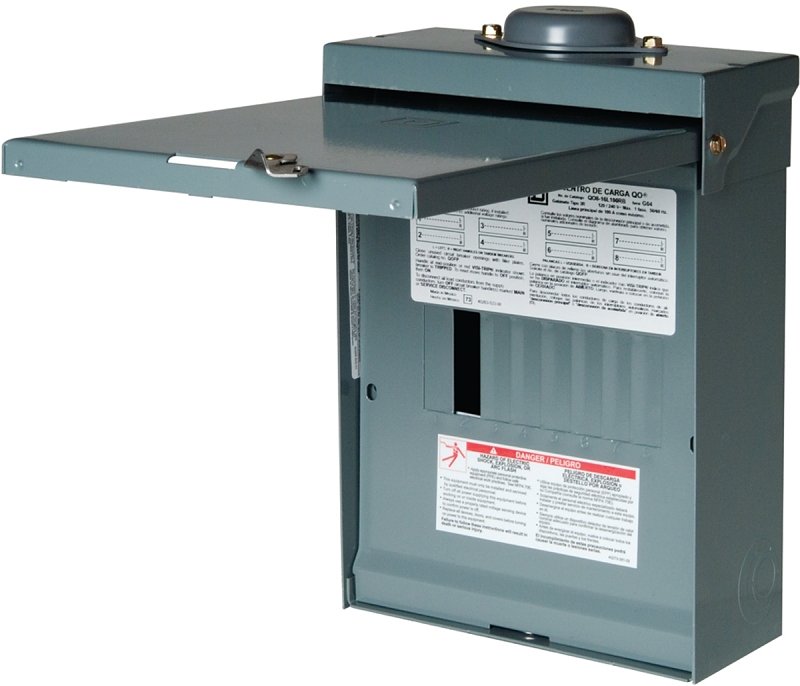

LOADCNTR MAIN LUG QO OUT 100A
Ships from Warehouse
Features
- Indoor and outdoor versions
- Separate flush or surface mount covers
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
- Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
Specifications
| Brand |
SQUARE D |
| Model # |
QO816L100RBCP |
| Length |
10.03 in |
| Width |
4.76 in |
| Height |
14.51 in |
| Weight |
9.25 lbs |
| UPC |
047569804779 |
| SKU |
6208771 |
