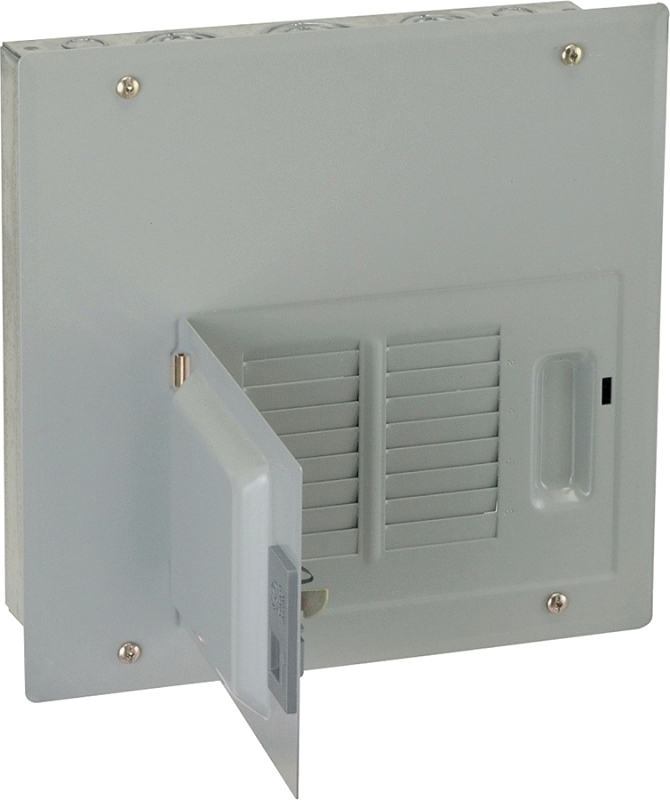

LOADCENTER MAIN LUG INDR 125A
Ships from Warehouse
Features
- Box is significantly smaller and lighter while maintaining optimum wire-bending space
- Side mounted main breaker allows top or bottom feed
- Sturdy copper bus and galvanized box increase durability and reliability, tin plated for corrosion resistance
- Minimum 100% neutral terminations
- All neutral holes rated for 14 - 4 AWG wire
- Extruded neutrals are easier to wire, reducing installation time and cost
- Combination slotted/Robertson screws speed wiring
- Accepts GE Q-Line branch circuit breakers, including GEs exclusive 1/2 in THQPs
- Interior removes and reinstalls easily
Specifications
| Brand |
GE |
| Model # |
TLMQ812FCUD |
| Length |
12.5 in |
| Width |
4.12 in |
| Height |
12.75 in |
| Weight |
8.2 lbs |
| UPC |
783164396669 |
| SKU |
6118137 |
