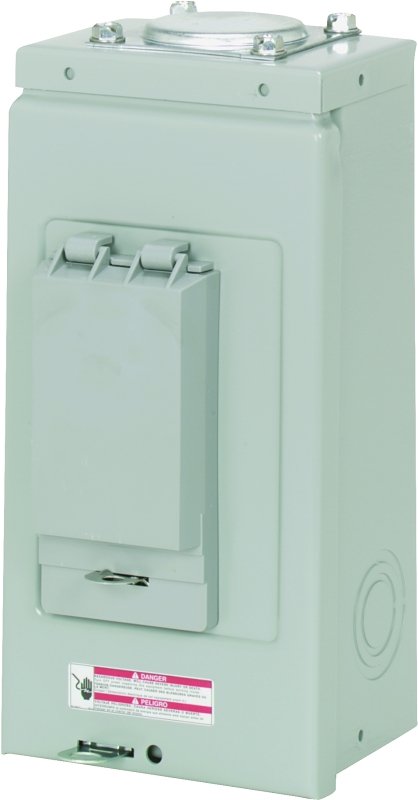

LOADCENTER MAIN LUG G60OUT 70A

Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Ships from Warehouse
  • Store Availability
Add to cart
Add to wishlist
Price
$ 59.99 $ 59.99
$ 59.99

Contact Us
Features
  • Panels are supplied with split insulated neutrals with an insulated cross strap
  • For service entrance applications, the neutral must be bonded by using the bonding strap supplied with the panel
  • For service entrance applications, all that is required to bond the neutral is to loosen the bonding screw and the neutral screw directly beside it, insert the bonding strap into the neutral bar and retighten both connections
Specifications
Brand CUTLER-HAMMER
Model # CH2L70RP
Length 4.5 in
Width 5.25 in
Height 11.0 in
Weight 3.5 lbs
UPC 782114190456
SKU 6065510
