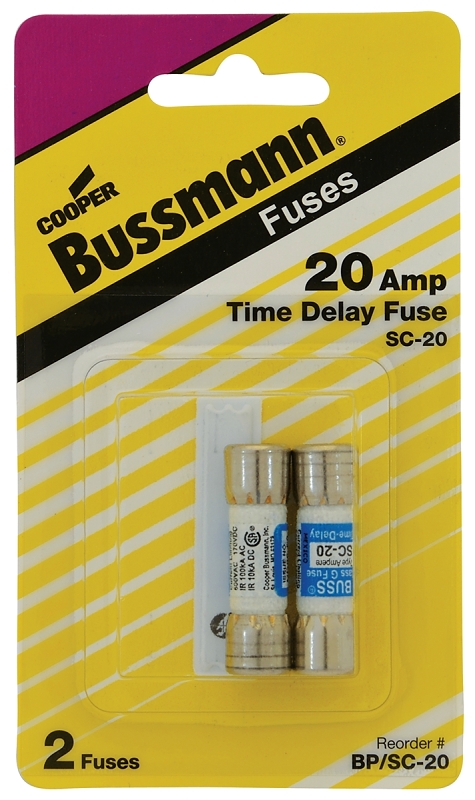

FUSE MIDGET 20 AMP
Availability
✓ In Stock at Paullina (2) - Pick up same day
Features
- Overcurrent protection solution compared to circuit breakers
- Compact branch-circuit units with high interrupt rating and current limitation
- Size rejection by length helps prevent overfusing
- Fuses 7 A and above have a degree of overload time delay that permits them to pass temporary overloads
- With up to a 600 V rating, they can be used in 120/208 V, 120/240 V and 277/480 V circuits
Specifications
| Brand | BUSSMANN |
|---|---|
| Model # | BP/SC-20 |
| Length | 2.0 in |
| Width | 3.0 in |
| Height | 6.0 in |
| Weight | 0.04 lbs |
| UPC | 051712593120 |
| SKU | 5387303 |
High interrupting rating, current limiting. Rated at 277/480, 120/208 and 120/240 V. UL Listed 100,000 AIR, RMS symmetrical AC (Glass G). 13/32 Dia fuse. Glass tube, nickel-plated brass endcaps.
