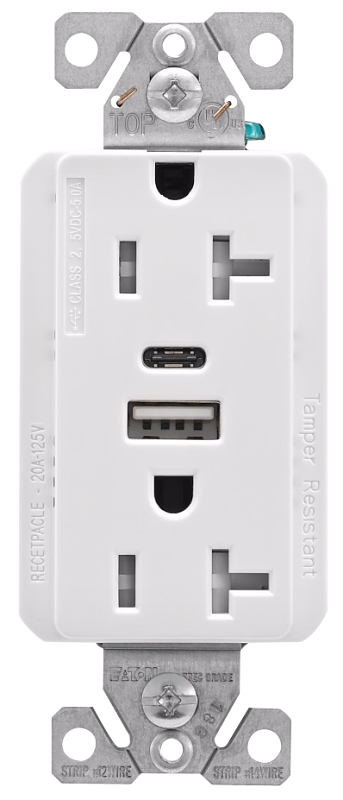

RECPT DPLX USB TYP A-C WHT 20A
Ships from Warehouse
Features
- Standard AC receptacle with USB and USB-C ports rated at a combined 5.0A
- USB-C charging port charges most electronic devices that comply with the USB-C standard
- Tamper-resistant shutters provide compliance with 2017 NEC® Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
- Replaces a standard duplex receptacle
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire strippers speed installation
- Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
Specifications
| Brand |
EATON WIRING DEVICES |
| Model # |
TRUSBAC20W-KB-L |
| Length |
4.0 in |
| Width |
6.125 in |
| Height |
11.0 in |
| Weight |
0.34 lbs |
| UPC |
032664016646 |
| SKU |
4896403 |
Specifications
|
