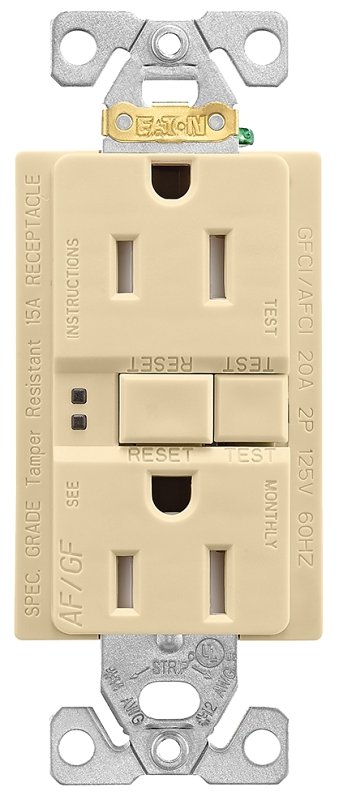

RCPT DPLX AF/GF TR IV 15A 125V
Ships from Warehouse
Features
- Protects from both series and parallel arcs downstream from the outlet Branch Circuit (OBC) AF/GF receptacle
- OBC AF/GF receptacles also protect from upstream series arcs
- Trip indicators make it easy to diagnose arc and ground faults
- Device self-tests periodically to ensure proper function of both the ground fault and arc fault protection elements
- Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) UL943 safety standards
- Ground termination with backwire clamp provides secure wiring and reduces installation time
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Tapered backwire openings handle multiple wire sizes and types for applications up to #10 AWG solid or standard wire
- When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
Specifications
| Brand |
EATON WIRING DEVICES |
| Model # |
TRAG15V |
| Length |
1.3 in |
| Width |
1.26 in |
| Height |
4.2 in |
| Weight |
0.33 lbs |
| UPC |
032664747625 |
| SKU |
4636106 |
