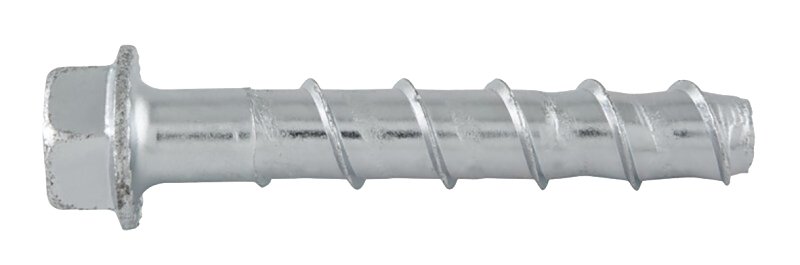

ANCHOR SCREW HEX WSHR 5/8X4IN

The Screw-Bolt™+ anchor is a one-piece, heavy-duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt™+ finish is available in bright zinc-plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.
Ships from Warehouse
  • Store Availability
Add to wishlist
Price
97.99 97.99
97.99

Features
  • Tough threads for tapping high strength concrete
  • Can be installed closer to the edge than traditional expansion anchors
  • Fast installation with powered impact wrench
  • One-piece, finished head design
  • Ratchet teeth on underside of hex washer head lock against the fixture
  • Fully removable and re-installable in same hole
  • Designed for standard ANSI tolerance drill bits
Specifications
Brand DEWALT
Model # PFM1411580
Length 4.25 in
Width 3.5 in
Height 10.9 in
Weight 11.0 lbs
UPC 075352305097
SKU 4593232
