Features
- Designed to work with 120/208/277 V applications
- Dust-proof, sealed motor housed in heavy-duty enclosure
- UL certified to control all LED applications
- Easy to override On/Off settings and 24 hr timer dial
- Multiple ratings accommodate many different load requirements
- Commercial-grade design with surge protection
- Indoor/outdoor housings ideal for a variety of applications
Specifications
| Brand | TORK |
|---|---|
| Model # | 1109A-O |
| Length | 3.687 in |
| Width | 9.5 in |
| Height | 6.875 in |
| Weight | 3.44 lbs |
| UPC | 786261101068 |
| SKU | 3128865 |

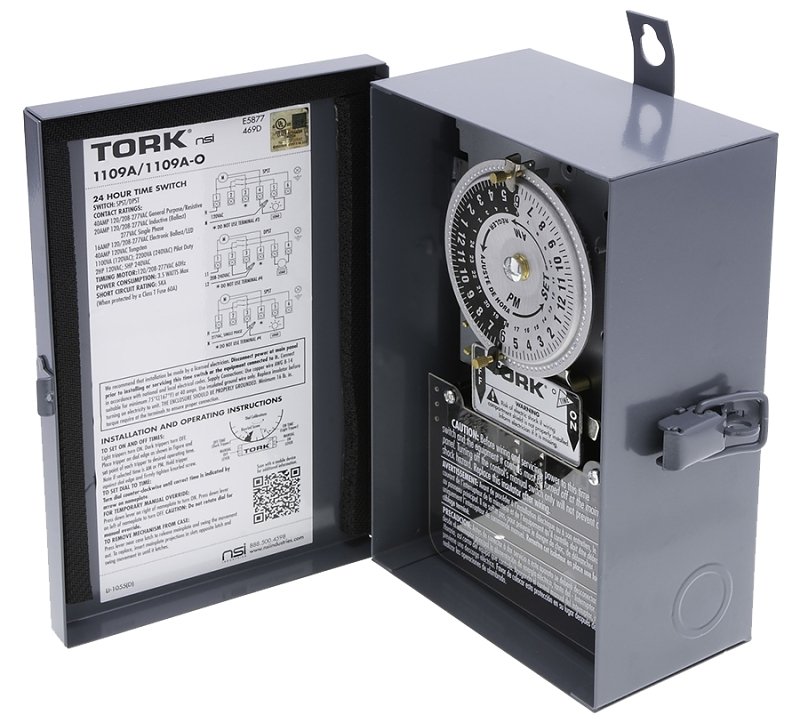

Tork 1109A Lighting Timer, Electromechanical, 120/208/277 VAC, 40 A, Wattage Rating: 3 W, Frequency Rating: 50/60 Hz, 2, 5 hp, Contact Configuration: SPST, Cycle Time: 24 hr, Time Setting: 20 to 75 min, IP Rating: NEMA 3R, Temperature Rating: -40 to 149 deg F, Metal, Gray, Suitable for: CFL, Fluorescent, Xenon, LED, Halogen, Incandescent, HID, Includes: (1) Pair Trippers
Specifications
| Store Availability | In Stock Locally |
