BOX FLOOR WOOD DUP RECPT18.5CU

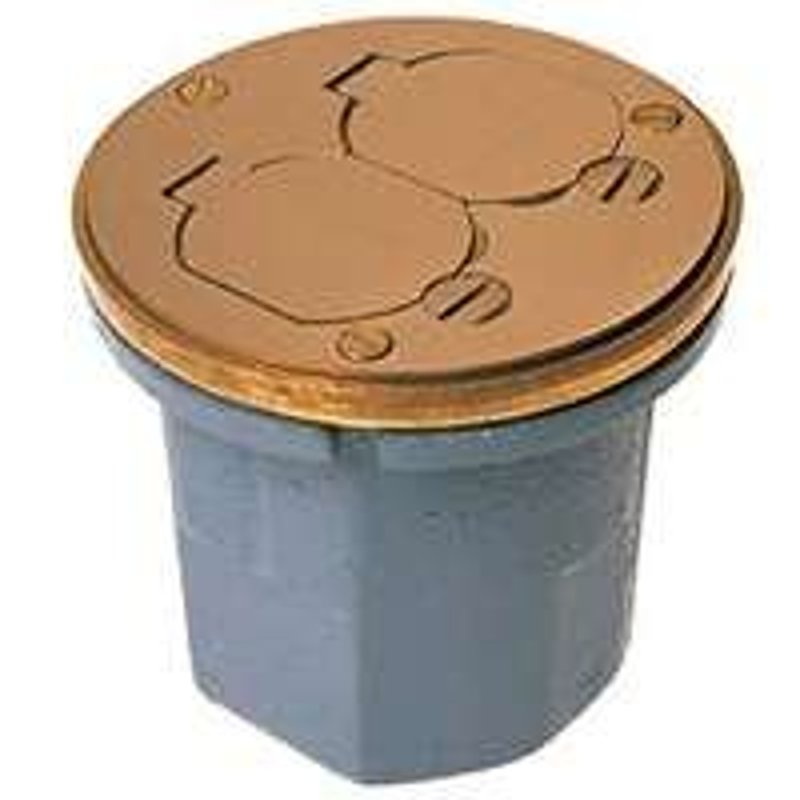

Round duplex receptacle floor box. Duplex cover with lift lids, 2-1/2 in bottom knockout, 18.5 cu-in capacity. Cast iron construction with gray powder coat finish for corrosion resistance. Suitable for carpet, tile or wood floor applications. Mop water tight. If floor covering is used, discard included brass tile flange and replace with Raco 6235 carpet flange. Includes box, brass duplex lift lid cover and brass tile flange. Receptacle not included. UL listed. 4.19 in Dia.
Ships from Warehouse
  • Store Availability
Add to cart
Add to wishlist
Price
$ 119.99 $ 119.99
$ 119.99

Contact Us
Features
  • Cast iron, water tight boxes are non-adjustable
  • Gray powder-coat paint inside and out for additional corrosion resistance
  • 1/2 in and 3/4 in threaded conduit openings are standard, all bottom openings are accessible
  • Installs a wood floor electrical outlet
  • Lids provide a watertight seal
  • Non-adjustable floor boxes may be used in wood or concrete floors
Specifications
Brand RACO
Model # 6224
Length 4.5 in
Width 4.75 in
Height 6.0 in
Weight 3.0 lbs
UPC 050169062241
SKU 1866698
