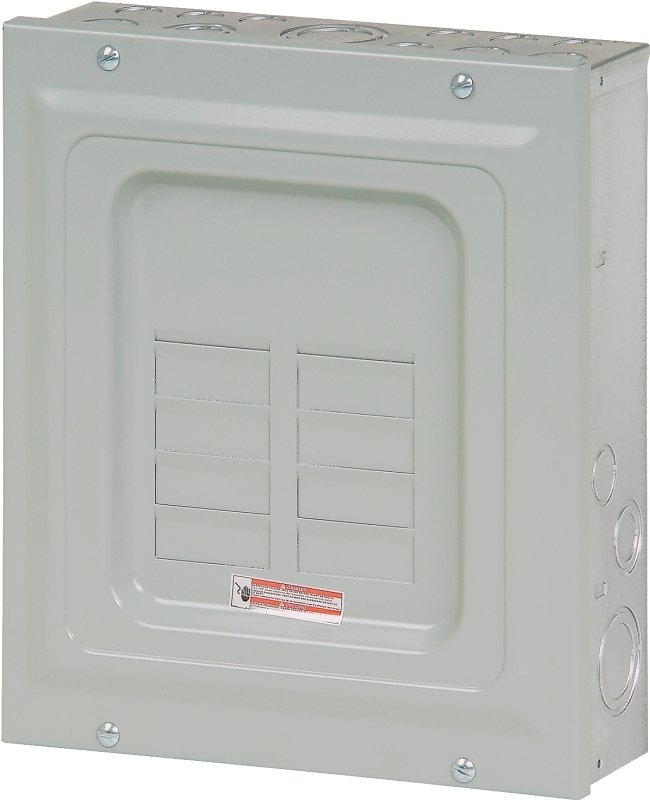

LOADCNTR MAIN LUG BR INDR 125A
Availability
Available from warehouse - Arrives January 13
Features
- Larger knockout provides easier installation and time savings
- Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
- Excellent conductivity and corrosion resistance, copper bus options available
- Drywall marking on enclosure - indicates proper mounting depth for flush applications
- Tangential center knockout, easier installation for conduit applications
- Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
- Neutral bus (strap) is easily removable for sub-panel applications
Specifications
| Brand | CUTLER-HAMMER |
|---|---|
| Model # | BR612L125SP |
| Length | 14.29 in |
| Width | 4.35 in |
| Height | 12.03 in |
| Weight | 9.3 lbs |
| UPC | 786676002035 |
| SKU | 6075386 |
